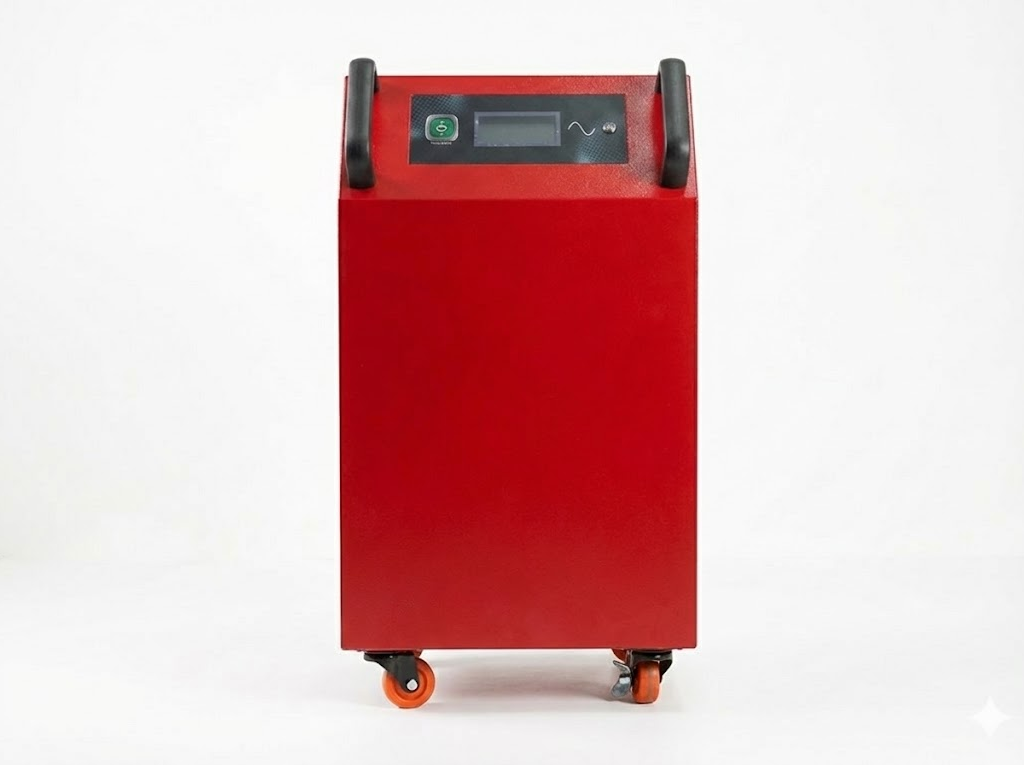

LIGEN-INV2000 – 24 VDC
Overview: The "LIGEN POWER" inverter is a robust commercial-grade solution designed for small to medium-sized businesses, offices, and shops. With its advanced features and sturdy build, it ensures uninterrupted power supply during outages, enabling smooth operations.
Technology: DSP Based technology ensures less components, compact size, reduced electricity bill, and higher efficiency. Built-in MPPT solar charge controller for optimized performance. Sine Wave Technology for safe and efficient power delivery. Soft Start Features protect appliances during start-up.
Intelligent Processing: DSP technology enables advanced control algorithms for precise output regulation, adaptive learning for optimized battery management, and fault detection for enhanced reliability. Efficient power management and quick fault response ensure uninterrupted operation in offline applications. Smart Display: Offers unique indications for mains status, Output status, system faults, Load status, Temperature status, Charging and battery status.
Protection Features: Includes MCB/Fuse for input mains protection and a bypass switch for direct main supply in case of inverter faults. Grid Protection with AC input low and high voltage cut off protections in both inverter and UPS modes. Noiseless Operation: Low harmonic distortion ensures quiet operation. This inverter prioritizes reliability, efficiency, and safety, making it an ideal choice for commercial establishments requiring dependable backup power solutions.
Key Features
4 Line LCD Display
4 Line Multifunctional LCD Front Panel display offers unique indications for mains status, Output status, system faults, Load status, Temperature status, Charging and battery status.
Advanced Safety
Multiple protection features including overload, deep discharge, over charge, short circuit, and over temperature protection.
2kVA Power
2kVA rated power with Pure Sine Wave output for safe and efficient power delivery. Ideal for residential and commercial applications.
MPPT Solar Controller
Built-in MPPT solar charge controller for optimized performance. Maximum 1.2kW PV connected with 58V-75V DC input range.
Efficient Power Performance
High efficiency (>98%) with DSP Based technology. Less components, compact size, reduced electricity bill, and higher efficiency.
DSP Technology
DSP Based technology enables advanced control algorithms for precise output regulation, adaptive learning for optimized battery management, and fault detection for enhanced reliability.
Technical Specifications
| PARAMETER | DETAILS / VALUES |
|---|---|
| MODEL | 2kVA MPPT PCU Inverter |
| RATED POWER | 2kVA / 2kVA (1 Phase Input 1 Phase Output) |
| INPUT VOLTAGE (BATTERY MODE) | 25.6V DC |
| BATTERY CHEMISTRY | Lithium iron phosphate (LFP) |
| BATTERY PACK | Internal integrated with 851P BMS |
| BATTERY CAPACITY | 100Ah |
| GRID INPUT VOLTAGE | 98V – 260V AC |
| SOLAR INPUT VOLTAGE | 58V – 75V DC |
| SOLAR USE | 1-100V DC |
| MAXIMUM PV CONNECTED | 1.2kW |
| SOLAR CONTROLLER TYPE | MPPT (Maximum Power Point Tracking) |
| CHARGING MODES | Solar, Grid |
| OUTPUT WAVEFORM | Pure Sine Wave |
| EFFICIENCY | > 90% |
| CHARGING MODES | Solar, Grid, Solar + Grid (if Solar CHG x [1.04x0.54]) |
| MAX SOLAR CHARGING CURRENT | 50A ± 5A (Boost Master based) |
| MAX GRID CHARGING CURRENT | 15A ± 1A (220V) |
| OPERATION LOGIC FOR CHARGING | Solar Priority (By default) / Grid Priority |
| OUTPUT VOLTAGE (BACKUP MODE) | 220V AC ± 3% |
| OUTPUT VOLTAGE (GRID MODE) | Same as Input |
| OUTPUT FREQUENCY ON BATTERY | 50Hz ± 0.05Hz |
| CHANGEOVER TIME | < 8ms |
| PROTECTION | Yes (Automatic Cut-off) |
| PROTECTION SUPPORTED | Overload, Deep Discharge, Over Charge, Short Circuit, Over Temperature |
| OVER LOAD CAPACITY | >100%: 3 times auto reset, 6th time shut down / >200% Output goes down |
| DISPLAY ON MPPT | SOLAR VOLTAGE, SOLAR CURRENT, BATT VOLTAGE, BATT CURRENT, CHG. STATUS, LOAD |
| DISPLAY ON UPS/INVERTER | LOW BATT, BATT. VOLTAGE, CHG. CURRENT, CHG. MODE, AC IN, AC OUT, LOAD, OVERLOAD, TEMPERATURE, INV ON/OFF STATUS |
| OPERATING TEMPERATURE RANGE | -30°C to 65°C |
| COOLING MECHANISM | Intelligent Fan Cooling |
| COOLING FAN START/STOP | 40°C or Load above 50% / 50°C & Load below 50% |
| AUDIBLE ALARM | Yes |
| BYPASS FEATURE | Manual |
| EFFICIENCY | >98% |
| WARRANTY | Inverter: 1 Year, Battery: 6 Years |
Additional Information
- High-frequency switching technology for compact size and light weight.
- Pure sine wave output for a wide range of applications and harsh environments.
- High efficient DC-to-AC conversion minimizing energy loss.
- Standby Charging Mode enables battery charging even when the unit is switched off.
- Intelligent cooling fan control and LCD displays comprehensive operation status.
- Suitable for powering computers, POS systems, routers, lights, and other sensitive electronic devices.
- Advanced microcontroller for optimal performance and reliability.
- Soft Start Features protect appliances at start-up.
- Easy installation and operation.
Perfect For
Small to Medium Businesses
Ideal for small to medium-sized businesses requiring reliable backup power.
Offices
Keep computers, POS systems, routers, and office equipment running.
Shops
Perfect for retail shops, restaurants, clinics, pharmacies, and banks.
Telecommunication
Suitable for telecommunication facilities requiring reliable backup power.
