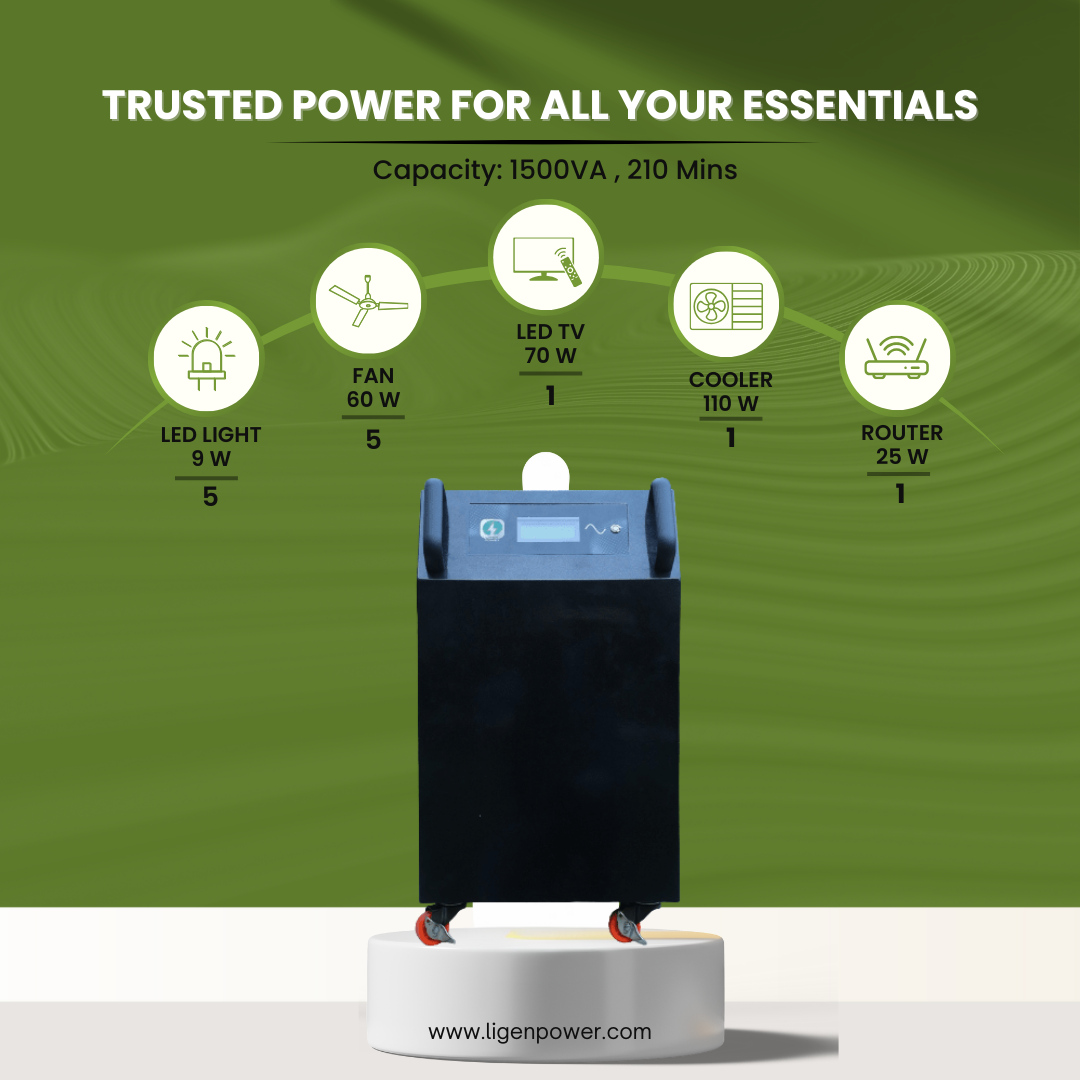

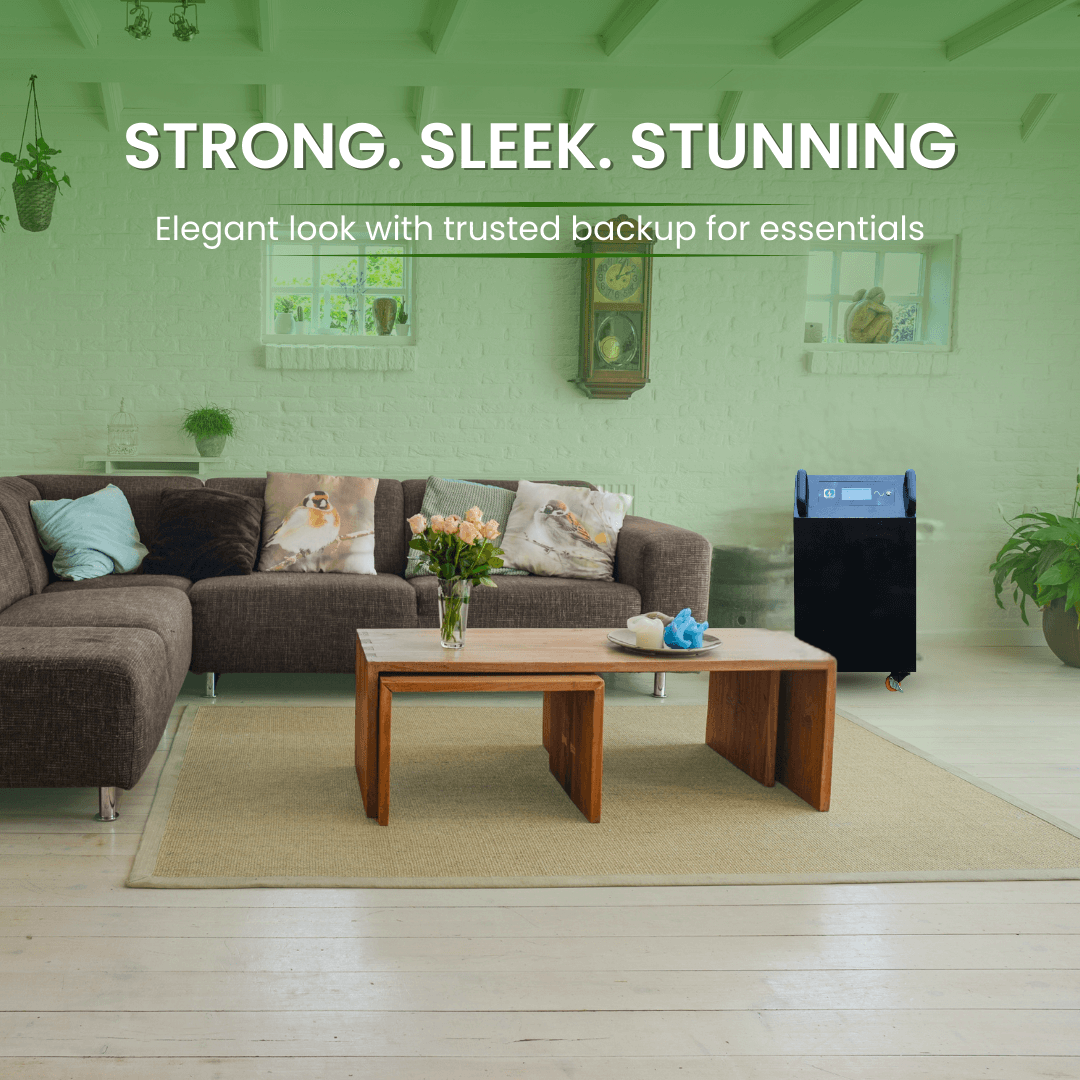

Ligen Power – 1500
Overview: The "LIGEN POWER" inverter is a robust commercial-grade solution designed for small to medium-sized businesses, offices, and shops. With its advanced features and sturdy build, it ensures uninterrupted power supply during outages, enabling smooth operations.
Key Features: Efficient Power Performance with high efficiency and low energy consumption. CRGO Laminated Core for premium quality and improved performance. Pure Copper Transformer ensures optimal power conversion. Low No-Load DC Current (0.7A ± 0.3A) for low idle consumption. High-Quality PCB (70 Micron) for reliability. Consistent Output maintains a constant output power factor of 0.8, with 1500VA (1200W max load) at a stable 220V.
Intelligent Processing: DSP technology enables advanced control algorithms for precise output regulation, adaptive learning for optimized battery management, and fault detection for enhanced reliability. Efficient power management and quick fault response ensure uninterrupted operation in offline applications. Smart Display: Offers unique indications for mains status, Output status, system faults, Load status, Temperature status, Charging and battery status.
Protection Features: Includes MCB/Fuse for input mains protection. Grid Protection with AC input low and high voltage cut off protections in both inverter and UPS modes. Noiseless Operation: Low harmonic distortion ensures quiet operation. This inverter prioritizes reliability, efficiency, and safety, making it an ideal choice for commercial establishments requiring dependable backup power solutions.
Key Features
LCD Display
Real-time monitoring of power consumption, battery status, and system information with an easy-to-read LCD screen.
Advanced Safety
Multiple protection features including overload, deep discharge, over charge, short circuit, and over temperature protection.
1500VA/1200W Power
Consistent output maintains a constant output power factor of 0.8, with 1500VA (1200W max load) at a stable 220V.
Premium Components
CRGO Laminated Core and Pure Copper Transformer ensure optimal power conversion and improved performance.
Efficient Power Performance
High efficiency with low energy consumption. Low No-Load DC Current (0.7A ± 0.3A) for minimal idle consumption.
DSP Technology
DSP Based design with less components, small size, less electricity bill, and more efficiency. High-Quality PCB (70 Micron) for reliability.
Technical Specifications
| PARAMETER | DETAILS / VALUES |
|---|---|
| MODEL | Ligen INV-1500VA |
| RATED POWER | 1500VA/1200W (1-Phase Input 1-Phase Output) |
| INPUT VOLTAGE (BATTERY MODE) | 25.6V DC |
| BATTERY CHEMISTRY | Lithium Iron Phosphate (LFP) |
| BATTERY PACK | INTERNAL INTEGRATED WITH 8S1P BMS |
| BATTERY CAPACITY | 100Ah |
| GRID INPUT VOLTAGE (Vmp) | 110V - 260V AC |
| OUTPUT VOLTAGE (GRID MODE) | Same as Input |
| OUTPUT VOLTAGE (BACKUP MODE) | 220V AC ± 2% |
| OUTPUT WAVEFORM (GRID MODE) | Same as Input |
| OUTPUT WAVEFORM (BACKUP MODE) | Pure Sine Wave |
| OUTPUT FREQUENCY (GRID MODE) | Same as Input |
| OUTPUT FREQUENCY (BACKUP MODE) | 50Hz ± 0.05Hz |
| MAX GRID CHARGING CURRENT | 15A±1A (CCCV) |
| CHARGING TIME (MAX) | 7 Hours 30 Minutes |
| LOAD (MAX) | 1050 Watt |
| BACKUP TIME | 2 Hours 10 Minutes |
| EFFICIENCY | > 90% |
| CHANGEOVER TIME | <8ms |
| PROTECTION | Yes (Automatic Cut-off) |
| PROTECTION SUPPORTED | Overload, Deep Discharge, Over Charge, Short Circuit, Over Temperature. |
| OVER LOAD CAPACITY | >110%: 3 times auto reset, 4th time shut down >200% Output goes down |
| DISPLAY ON UPS/INVERTER | LOW BATT., BATT. VOLTAGE, CHG. CURRENT, CHG. MODE, AC IN, AC OUT, LOAD, OVERLOAD, TEMPERATURE, INV ON/OFF STATUS |
| OPERATING TEMPERATURE RANGE | -20°C to 65°C |
| COOLING MECHANISM | Intelligent Fan Cooling |
| COOLING FAN START/STOP | 60°C or Load above 50%/50°C & Load below 50% |
| AUDIBLE ALARM | Yes |
| BYPASS FEATURE | Manual |
| WARRANTY | Inverter: 1 Year, Battery: 6 Years |
Additional Information
- High-frequency switching technology for compact size and light weight.
- Pure sine wave output for a wide range of applications and harsh environments.
- High efficient DC-to-AC conversion minimizing energy loss.
- Standby Charging Mode enables battery charging even when the unit is switched off.
- Intelligent cooling fan control and LCD displays comprehensive operation status.
- Suitable for powering computers, POS systems, routers, lights, and other sensitive electronic devices.
- Advanced microcontroller for optimal performance and reliability.
- Soft Start Features protect appliances at start-up.
- Easy installation and operation.
Perfect For
Small to Medium Businesses
Ideal for small to medium-sized businesses requiring reliable backup power.
Offices
Keep computers, POS systems, routers, and office equipment running.
Shops
Perfect for retail shops, restaurants, clinics, pharmacies, and banks.
Telecommunication
Suitable for telecommunication facilities requiring reliable backup power.
Ready to Power Your Business?
Get in touch with us today to learn more about the Ligen Power – 1500 and how it can meet your commercial power backup needs.
